Single-handed operation

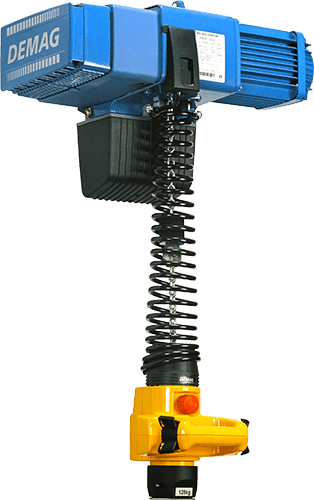

Our DCMS-Pro Manulift combines fast and reliable load handling with variable speed control and operation with only one hand. It is based on the lifting unit of our DCS-Pro chain hoist and our DSM-CS control unit. The wide range of performance offered by the DCMS-Pro:
- chain hoist operation and load handling with one hand
- safe, reliable and precise positioning of sensitive goods and valuable products thanks to variable speed control
- fast lifting motions at almost double the rated speed in the partial load range
- quick-change coupling for a reliable hold
- simple replacement of the load handling attachment
- suitable for right-hand and left-hand operation.
Your Contact

Demagcranes
Demagcranes
125 Ye Zhuang Road, European Industrial Zone Zhuanghang Town, Fengxian District
Shanghai 201415
P.R. China
Product information
The benefits at a glance
In comparison with the proven DCM-Pro with two lifting speeds, the DCMS-Pro offers you further benefits.
Maximum ease of operation
- Infinitely variable speed control for lifting and lowering motions over the entire load range
- Exceptionally fine control at slow speed
- Smooth starting and exact positioning
- Creep lifting speed from 0.15 m/min
- Lifting speed, acceleration and braking ramp can be simply modified via the control unit
- Suitable for right-hand and left-hand operation
Versatile performance
- The various Manulift load handling attachments can be changed with ease
- Pro-Hub function for up to 90 per cent higher nominal speed for partial load or no-load operations
- Automatic switchover to creep lifting speed before the upper/lower limit positions are reached – speed ratio 1:100
High safety and reliability
- Motor temperature monitoring device
- Acceleration and braking ramps to reduce load sway
Technical data
DCMS-Pro Manulift (variable lifting speed)
Load |
Manulift type DCMS-Pro |
Lifting speed at 50/60 HZ [m/min] |
Hook path |
FEM | Reev- ing |
Weight [kg] | ||
for hook path |
||||||||
VSrated | VS max | 2.8m | 4.3m | |||||
80 | 1 | 0.15-30 | 30 | 2.8 and 4.3 | 4m | 1/1 | 25 | 27 |
125 | 1 | 0.15-30 | 4m | |||||
200 | 2 | 0.15-16 | 3m | |||||
250 | 2 | 0.15-16 | 2m+*) |
*) 2m+ corresponds to 1,900 hours at full load
DCRS-Pro rocker switch (variable lifting speed)
Load |
Manulift type DCRS-Pro |
Lifting speed at 50/60 HZ [m/min] |
Hook path |
FEM | Reev- ing |
Weight [kg] | ||
for hook path |
||||||||
VSrated | VS max | 2.8m | 4.3m | |||||
80 | 1 | 0.15-30 | 30 | 2.8 and 4.3 | 4m | 1/1 | 25 | 27 |
125 | 1 | 0.15-30 | 4m | |||||
200 | 2 | 0.15-16 | 3m | |||||
250 | 2 | 0.15-16 | 2m+*) |
*) 2m+ corresponds to 1,900 hours at full load
