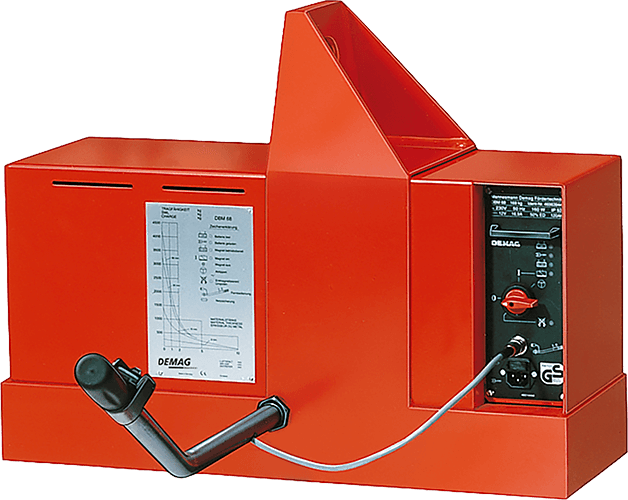

Battery magnets
Battery magnets
Firm hold in any position
Our battery magnets are the ideal solution wherever you need to transport magnetisable loads safely and efficiently, independently of a mains power supply. They can be used as stationary units installed on wall and pillar-mounted – or as mobile equipment on forklifts and workshop cranes, in stores and in industrial applications where sheet and plate metal is processed. Here are just a few of their outstanding advantages:
- universal application
- compact design
- high safety and reliability
- high load capacity
- loads are always safely picked up
- automatic charging.
Your Contact
Demagcranes
Demagcranes
125 Ye Zhuang Road, European Industrial Zone Zhuanghang Town, Fengxian District
Shanghai 201415
P.R. China
Product information
The benefits at a glance
Our battery magnets combine an electromagnet, battery and control unit with an integrated charging system for a high level of safety, reliability and flexibility.
High safety and reliability
- Loads are always picked up safely thanks to automatic switch-on disabler if the battery voltage is too low
- Residual magnetism is reduced to a minimum by means of automatic demagnetisation
- Automatic charging control protects the 12 V battery against overcharging
- Charge level can be seen at all times thanks to display of battery voltage by light-emitting diodes (dual monitoring by acoustic signal and optical indicator)
- Automatic self-test of the warning device when the charging process begins
Universal application
- Outdoor operation also possible with IP 53 enclosure (power source, charger and operating elements combined into one unit)
- Single metal sheets can be separated from the load by flicking the toggle switch
- High load capacity
Technical data
| Type | DBM 34 | DBM 68 |
|---|---|---|
| Order no. | 727 204 44 | 727 205 44 |
| Maximum load capacity for safety factor of 2 [kg] | approx. 2,000 | approx. 4,000 |
| Power consumption [W] | 52.2 | 86.8 |
| Battery voltage [V] | 12 | 12 |
| Battery capacity [ah] | 44 | 120 |
| Discharging time at 50% CDF/10 min. (in hours) | 8 | 8 |
| Max. charging time (in hours) | 10 | 10 |
| Charging voltage | 220 V AC/50 Hz | |
| Length [mm] | 340 | 680 |
| Width [mm] | 250 | 250 |
| Height incl. suspension [mm] | 460 | 525 |
| Suspension eye diameter [mm] | 80 | 120 |
| Deadweight [kg] | 80 | 169 |
